RO PLANT 500 LPH

150,000.00

Reverse Osmosis can remove 95-99% of the dissolved salts (ions), particles, colloids, organics, bacteria,
and pyrogens from the feed water. An RO membrane rejects contaminants based on their size and
charge. Any contaminant that has a molecular weight greater than 200 is likely rejected by a properly
running RO system. Likewise, the greater the ionic charge of the contaminant, the more likely it will be
unable to pass through the RO membrane.

Reverse Osmosis is very effective in treating brackish, surface and ground water for both large and small
flows applications. Some examples of industries that use RO water include pharmaceutical, boiler feed
water, food and beverage, metal finishing and semiconductor manufacturing to name a few.

Compare

Description

RO Plant

PRODUCT DETAILS
PRODUCT NAME 500 LPH RO PLANT
PURIFICATION TYPE RO
MODEL NUMBER AT/RO/500

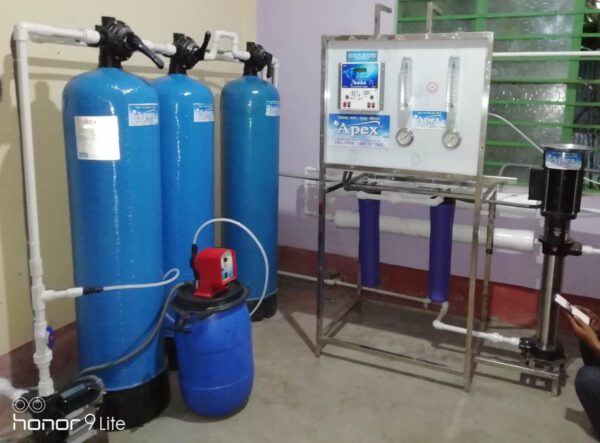

SHORT CONFIGURATION OF 500  LPH RO PLANT
SL     NO.MATERIAL QTY UNIT    DESCRIPTION
1VESSEL(12*48) (T)  3 PCS    MGSF FILTER AND ACTIVATED CARBON FILTER
2VESSEL(10*54) (T/B TATA )  1 PCS    MNO2 CHAMBER
4RAW WATER PUMP(0.75 HP)   1 PCS    FLOW RATE OF 1500- 3000 LPH
5 MUITIPORT VULVE(25NB)   3 PCS    MAX WORKING PRESSURE-5KG/CM2
620″ JUMBO FILTER  2 PCS    FLOW RATE 6000-8000 LPH
8HIGH PRESSURE PUMP (2-9)  1 PCS    FLOW RATE -3500LPH
9SS SKID  1 PCS    500 LPH
1040*40 MEMBRANE  2 PCS    SALT REJECTION-95-98%
12FLOW METER  2 PCS    1200 LPH
13ALUM  10 KG

IT IS USED TO REDUCE THE AMOUNT OF PHOSPHORUS

AND FLUORIDE IN THE WATER

14CHLORINE  10 LTR   IT IS USED TO PREVENT CONTAMINATION WITH GERMS.
15ANTISCALANT  5 LTR

IT IS USED TO PREVENT THE SCALING & FOULING OF THE

RO MEMBRANE

16

PRESSURE GAUGE 21KG/7KG

  2 PCS   TO CALCULATE PRESSURE EACH UNIT IN RO SYSTEM
23DOSING PUMP  3 PCS

CAPACITY – 6LPH ,PUMP FLOW MAX                                                               0-5/HOUR                                                                                                                                                                                                                                                                                                                       MAXIMUM PRESSURE5-6 BAR

25RO PANEL  1 PCS

IT IS PROVIDED AS A SAFETY MEASURE FOR THE PUMP

& OTHER ELECTRICAL ITEMS.

27

ALKALINE CARTRIDGE

  1 PCS    20 INCH
29UV SET 500  1 PCS    STAINLESS STEEL 304
